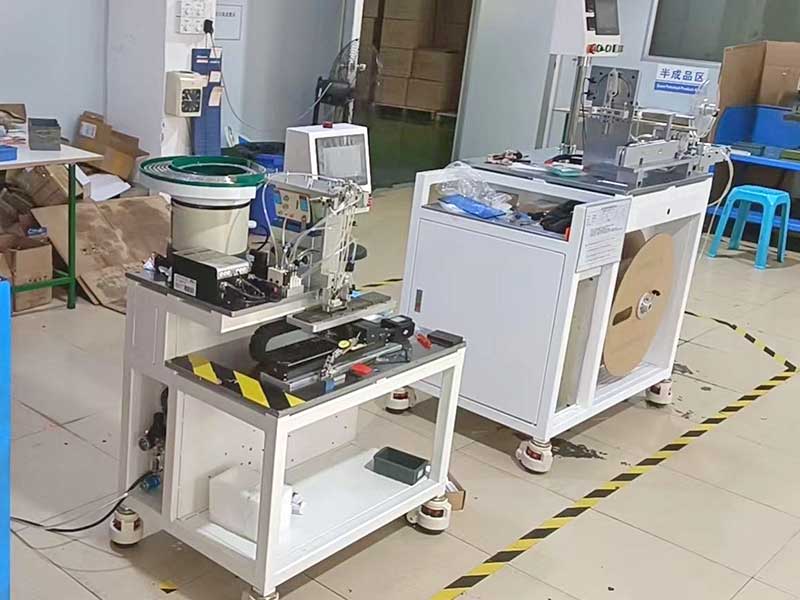

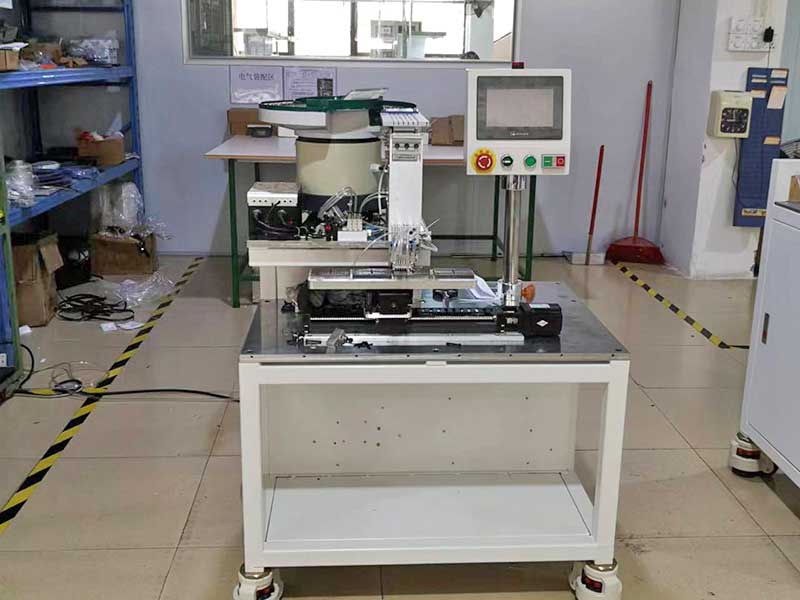

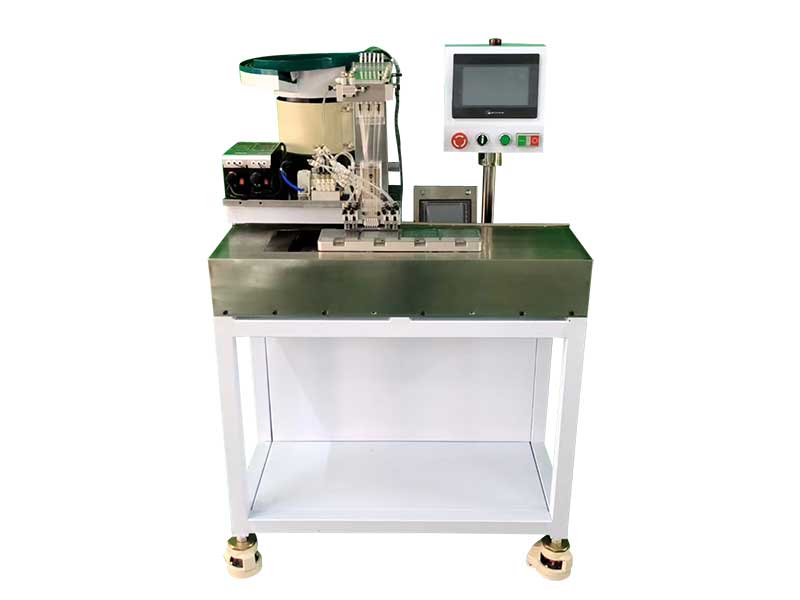

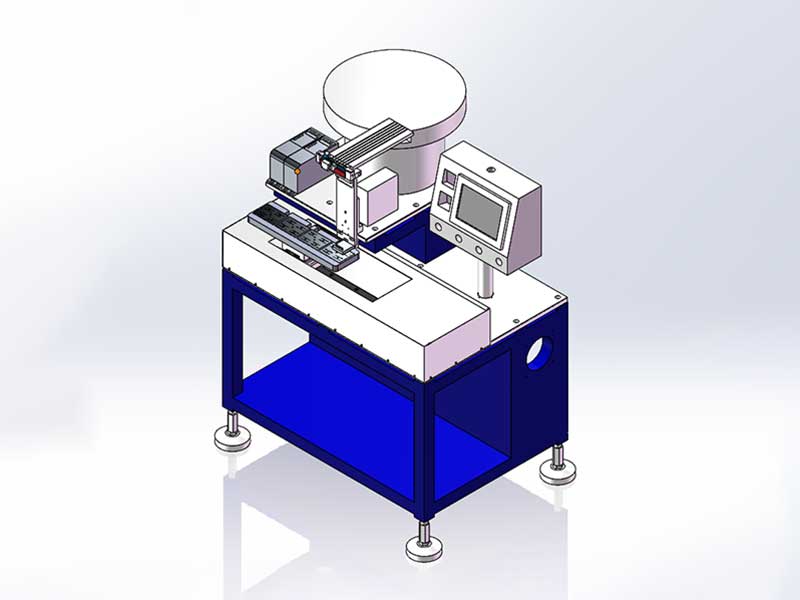

Screw Molding Machine SE-0101 This device allows screws to be embedded in the mold or fixture for the next production process. It features a vibrating disk for material feeding. The feeding module can supply 4 sets of screws at once. The batch of 6 screws is separated using a feeding device and sent into the screw guide. Then, the X and Y modules are responsible for shifting the substrate. Two substrates form a set, with one set being processed by the machine to install screws, while the other set is manually handled to retrieve the completed substrate and place an empty one, following a continuous cycle.

  • Detail

  • Product Specs

● Maximum board loading speed: 2 boards per minute or more.
● Equipment configuration:
- 2 machine-operated board loading positions
- 2 manual board placement positions
- 1 pneumatic feeding position
- 1 linear vibration module
- 1 circular vibration module
● Power supply requirement: 220VAC / 1KVA
● Air supply requirement: ≥0.5MPa
● Overall dimensions: 800mm length × 800mm width × 1300mm height
● Weight: Approximately 120KG

Specification:SE-0101
