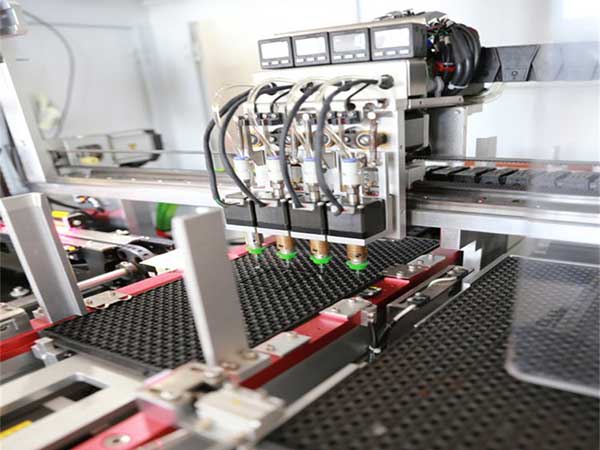

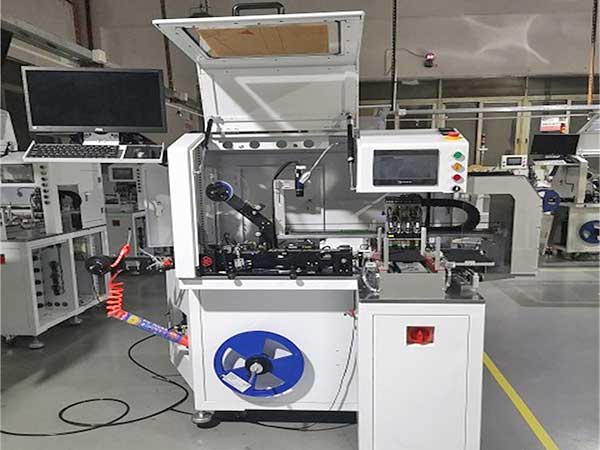

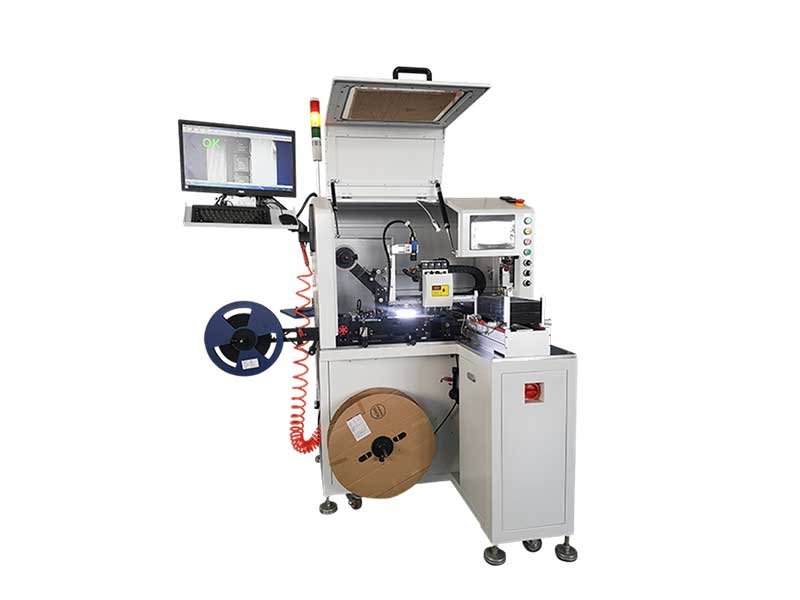

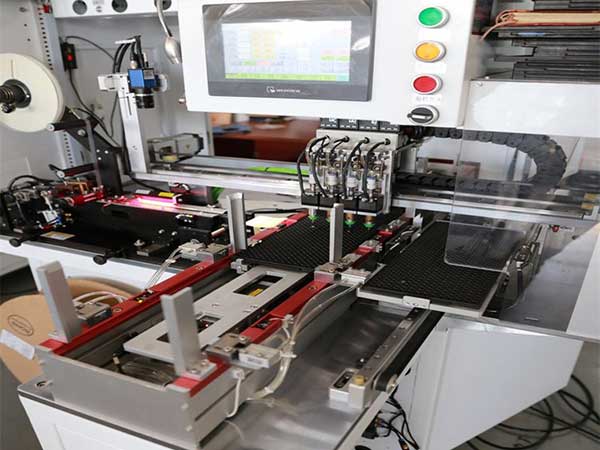

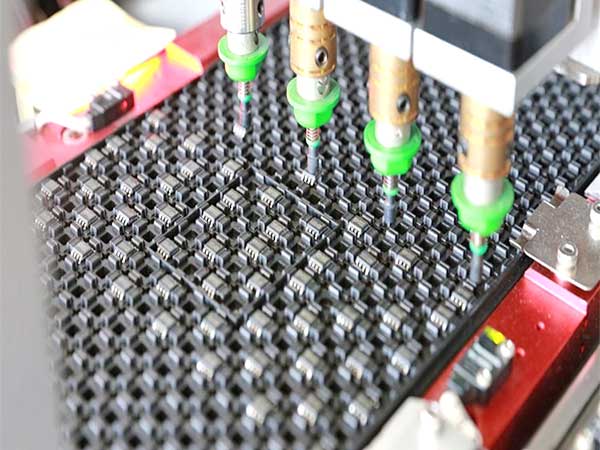

Tray to Reel Automatic Taping Machine TTR-400 This equipment is an automated production device that converts tray packaging into tape and reel packaging. It features automatic loading from the tray, PLC calculation of row and column spacing, pick-up by a robotic arm, image inspection to discard NG (non-conforming) parts, and placement of OK (conforming) parts into the carrier tape followed by sealing. It is suitable for batch packaging of ICs, modules, hardware components, and other tray-based loading applications

  • Detail

  • Product Specs

  • Features&Benefits

  • Options

  • Related Supplies

● Placement Speed:UPH 1500~5000
● Production output:12~56mm
● Dimensions: D 1100mm x W 1000mm x H 1550m
● Weight：350KG

Specification:TTR-400

● The equipment enables the conversion from tray packaging to reel packaging, featuring a clamping-type cavity on the track for stable control and easy adjustment
● The servo motor ensures precise tape pulling

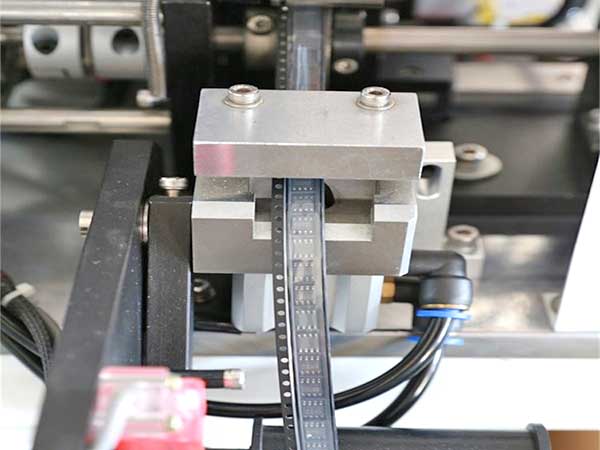

● The blade head allows precise adjustment, with fine-tuning of the inner and outer heat sealing blades using micro-heads to achieve precise adjustment of the sealing line position within ±0.1mm, resulting in a more aesthetically pleasing seal
● Dual independent PID temperature control ensures accurate and stable temperature control
● Automatic cutting and automatic feeding from the vibration feeder. Parameters and production quantities can be saved even when power is lost.

● Vision Inspection
● Empty pocket detector
● Laser Marking
● Upgrading Feeding System(tube/bowl/tray input)
● Dimensional Inspection
● 3D BGA inspection
●Electrical Performance Testing/p>

● Manual Taping Machine
● Peel force tester
● Aluminum foil bag vacuum packaging machine
● Carrier tape, cover tape, reel
