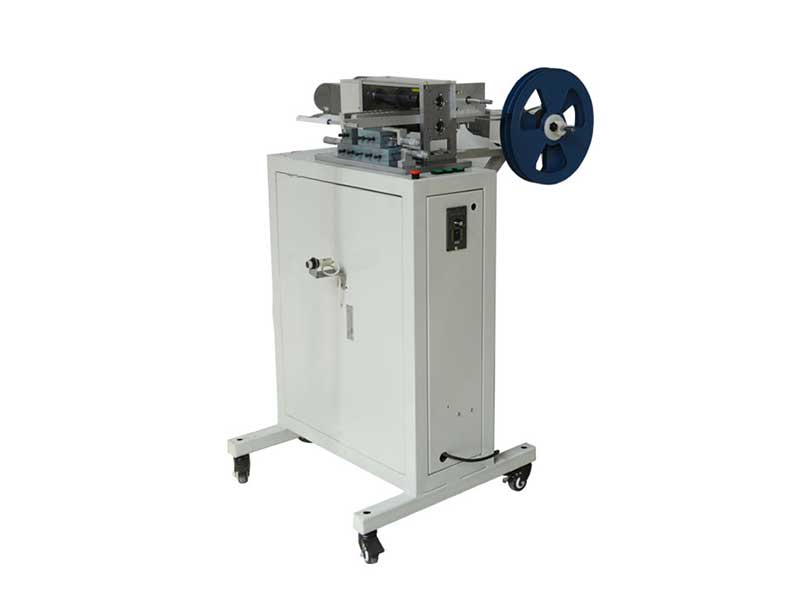

Slitting Machine SM-01 The slitting machine is an auxiliary equipment for the carrier tape forming machine. This machine can be customized according to customer requirements in terms of size and number of slits. Whether you need to increase production capacity or produce special carrier tapes with slits, our machine will meet your needs.

  • Detail

  • Product Specs

  • Features&Benefits

  • Options

  • Related Supplies

● Slitting width: 8~32mm
● Slitting method: Dual-axis continuous exchange slitting
● Production speed: 160~350 meters (depending on the size)
● Machine dimensions: 800mm (length) * 800mm (width) * 880mm (height)
● Machine weight: 120KG
● Power supply: AC220V, 50Hz
● Compatible reel sizes: 22-inch and 27-inch plastic or paper reelsI

Specification:SM-01

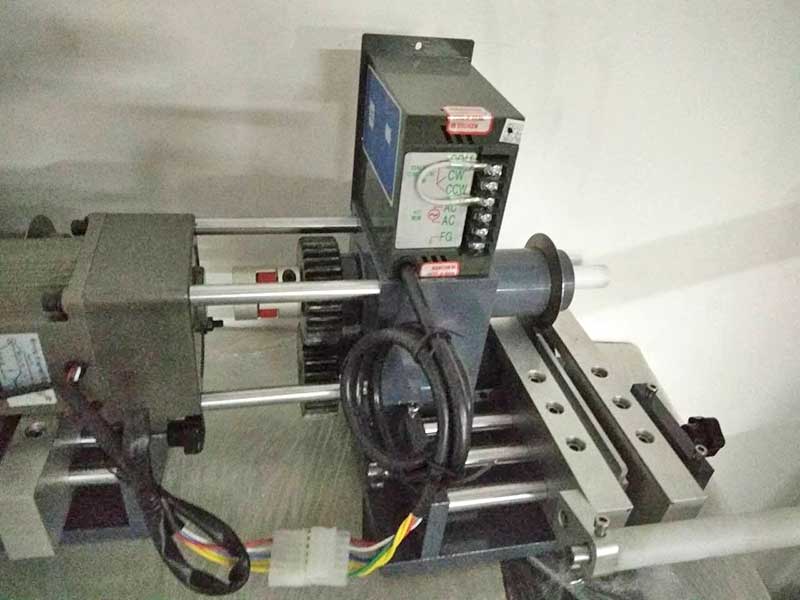

● Excellent and stable slitting blade structure: Improved and tested over many years. This structure is easy to operate and maintain, has a long lifespan, and provides balanced heat sealing.
● The machine body is made of high-quality aluminum alloy material and undergoes high-precision machining, ensuring durability and longevity of the equipment.
● All processing components are machined in-house using our own milling machines, grinders, and wire cutting machines, ensuring good quality and cost-effectiveness of the equipment.
● The main components of the slitting machine are subjected to high-temperature quenching, internal and external grinding, and surface grinding processes, resulting in high precision and long service life.
● High-end tungsten steel cutting tools are used, which are wear-resistant and have a long lifespan. The slitting is uniform without burrs. The slitting speed can be adjusted, and the width adjustment can be precise to within ±0.02mm.

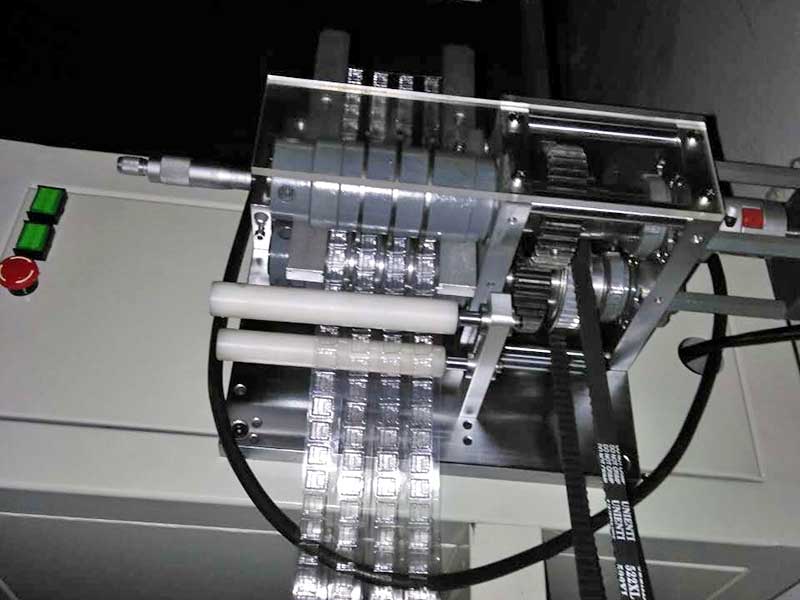

● Optional number of strips: 2 to 4 strips.

● Manual Taping Machine
● Peel force tester
● Aluminum foil bag vacuum packaging machine
● Carrier tape, cover tape, reel
